PoE Powered VoIP Endpoint Interfaces Analog Paging Systems with SIP and Multicast Paging Sources

Find A Distributor

Product Details

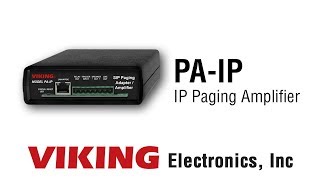

The Viking model PA-IP SIP / Multicast Paging Adapter provides an interface between new VoIP phone systems (hardware or hosted / cloud based) and analog paging systems, eliminating the need for an ATA or FXS port. The PA-IP can be used for standard SIP endpoint paging or multicast paging and background music.

The unit easily connects with a single CAT5/6 cable from your PoE switch. An auxiliary trigger input allows an optional hard wired switch or phone system trigger output to enable loud ringing / night bell from after hour incoming calls. Line-level audio output connections are provided for connecting to an external amplifier.

A built-in 6 Watt class D amplifier with speaker output connections is also provided to drive up to 6 analog 8 Ohm speakers. A programmable relay output is provided for triggering external amplifiers, etc.


Applications

  • Amplified SIP endpoint or multicast IP paging for:
    • Schools
    • Hospitals
    • Retail stores
    • Office spaces, etc.
  • Provide background music and sound masking
  • IP phone system integration with traditional analog amplifier (e.g. single zone voice paging)

Videos


Features

  • PoE powered (class 3, <13 Watts)
  • Paging prioritization
  • Plays audio from multicast
  • SIP endpoint or multicast group member
  • Supports up to 10 multicast paging groups
  • Red “Page / Status” LED indicator
  • SIP compliant (see product manual for list of compatible IP-PBX phone systems)
  • Network downloadable firmware
  • Autoprovisioning via Viking programming software
  • Built-in high efficiency 6 watt class D amplifier
  • Relay for activating door locks, strobe lights, external amplifiers, etc.
  • SIP / Multicast: SIP page, SIP page and zoned multicast stream, zoned Multicast receive
  • Support for access code to prevent unwanted SIP calls
  • Line-level audio output for connecting to an external amplifier
  • Network remote volume control
  • Can drive up to 6 external analog 8 Ohm speakers
  • Diagnostics (for testing the relay)

Specifications

  • Power: PoE class 3 (<13 Watts)
  • Dimensions: 5″ x 5.25″ x 1.5″ (127mm x 133mm x 38mm)
  • Shipping Weight: 1.0 lbs (0.45 kg)
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Humidity: 5% to 95% non-condensing
  • Audio Codecs: G711u, G722, and G711a (SIP only)
  • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
  • Maximum Output Level driving one Viking 40AE Speaker: 105 dB SPL @ 1M
  • Amplifier: 6 Watt class D (capable of driving up to six 8 Ohm speakers connected in parallel)
  • Connections: (1) RJ45 10/100 Base-T, (8) cage clamp screw terminals on pluggable connector

Certifications

  • FCC Part 15
  • SIP

Tones

To download a tone for use on your product, right click on the Download icon and select "Save Link As" (instructions may vary slightly per web browser)

Tone Description Preview Download
Normal Ring Normal Ring Cadence N/A
Double Ring Double Ring Cadence N/A
Short Short Long Short Short Long Ring Cadence N/A
Short Long Short Short Long Short Ring Cadence N/A
One Beep One Beep N/A
Two Beeps Two Beeps N/A
Three Beeps Three Beeps N/A
